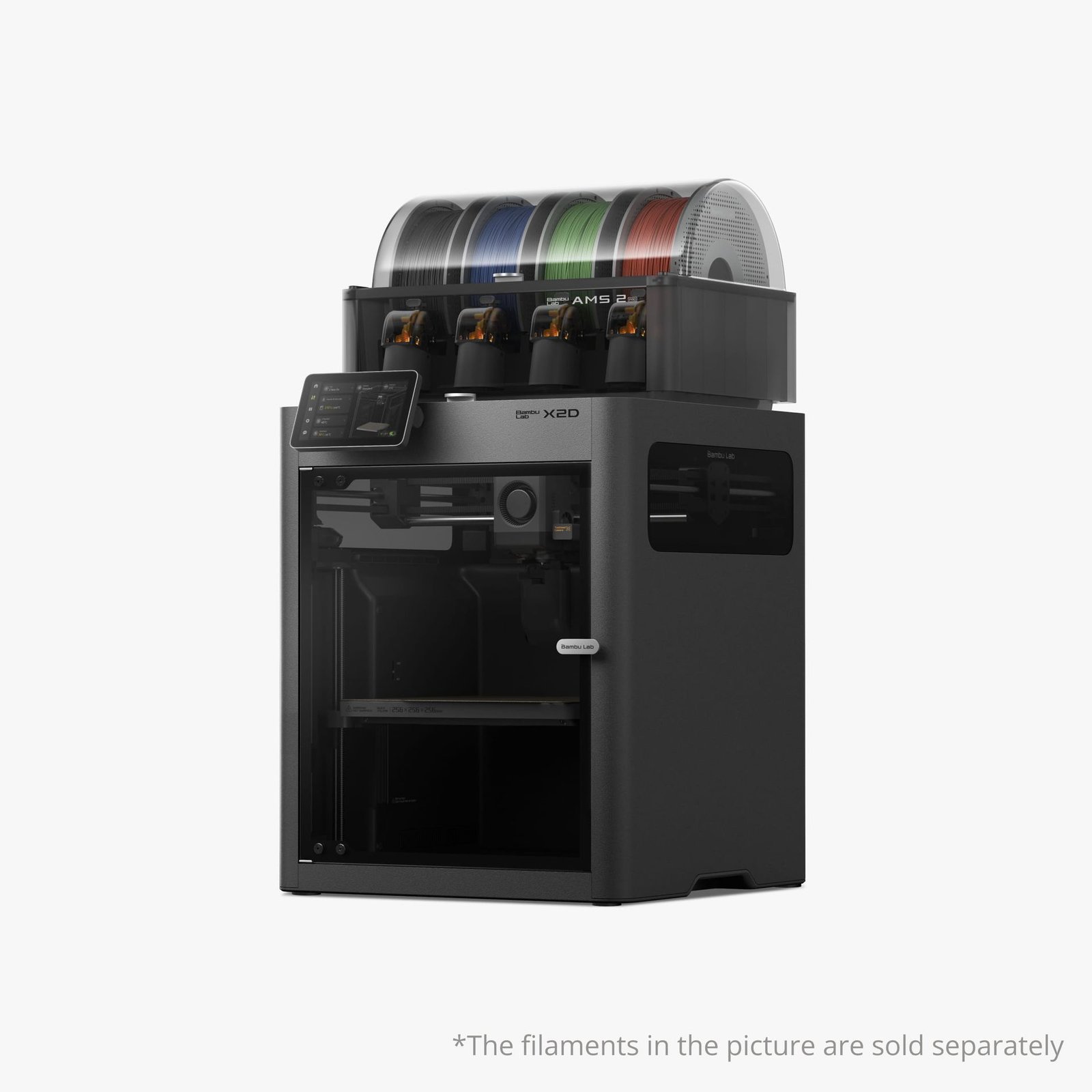

Bambu Lab X2D 3D Printer

• Dual-Nozzle 3D Printing
• Faster Multi-Color Printing & Cleaner Support Removal
• 300 °C Nozzle & 65 °C Active Chamber Heating
• Closed-Loop Servo Motor Extruder
• Full Filament Path AI Detection
• 256 × 256 × 260 mm³ Print Volume
• Voltage Range: 200–240V
• To connect more than two AMS (including AMS 2 Pro, AMS HT), a 4-in-1 PTFE Adapter (FAZ013-N) is needed

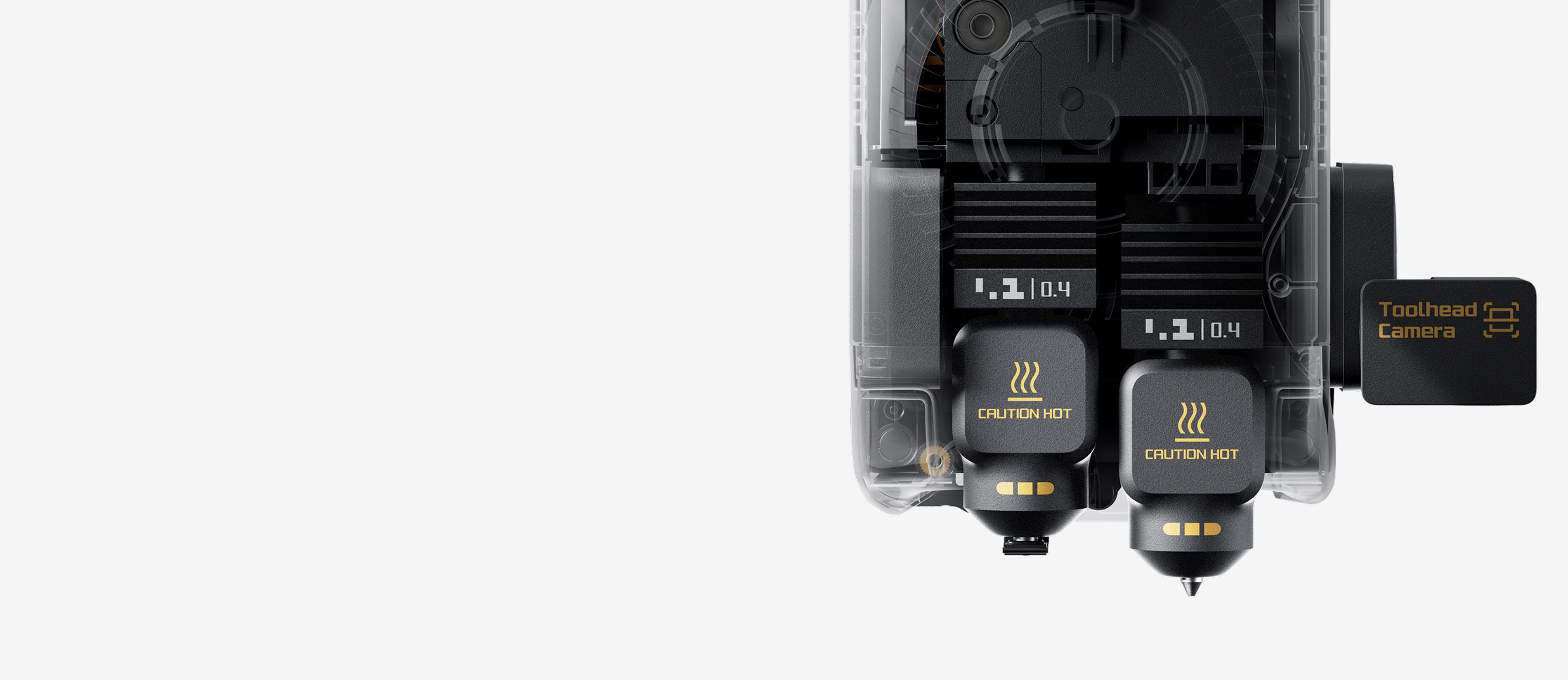

Intelligent Dual-Extrusion Technology

The X2D utilizes a unique gear and ratchet mechanical switching mechanism for its dual nozzles. By eliminating the need for an additional motor on the print head itself, mass and vibration are minimized at high speeds. The switching mechanism has passed durability testing with over one million cycles without loss of performance. The system is optimized for running model and support materials in parallel, enabling the creation of intricate shapes with high precision.

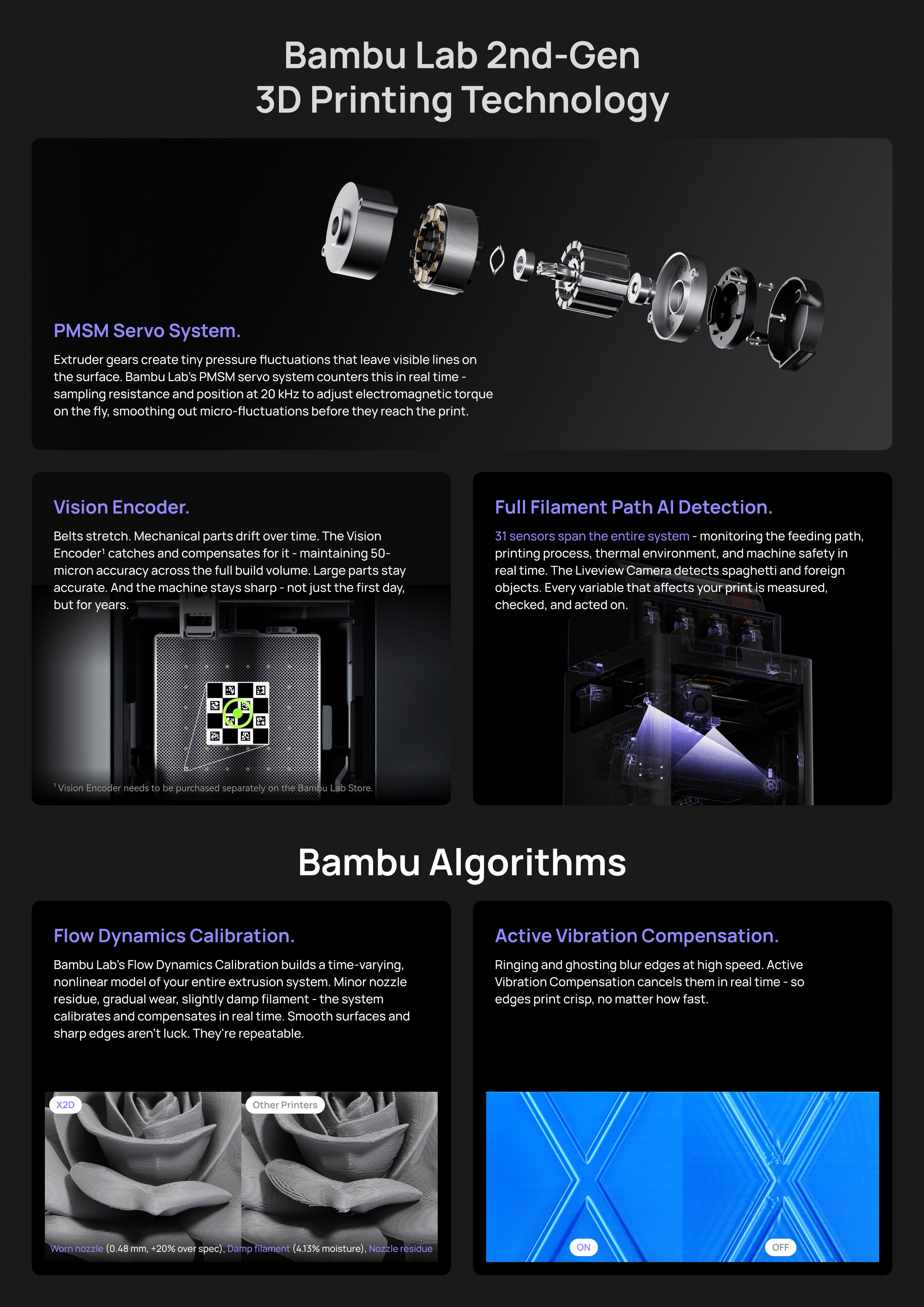

Monitoring and Thermal Control

The printer is equipped with 31 sensors monitoring material flow, safety, and the thermal environment. The enclosed build chamber can be heated up to 65 °C, which combined with a 300 °C nozzle, enables printing in engineering materials such as ABS, ASA, and Nylon. Thanks to the PMSM motor, which samples torque 20,000 times per second, the machine can detect nozzle clogs before a print failure occurs.
